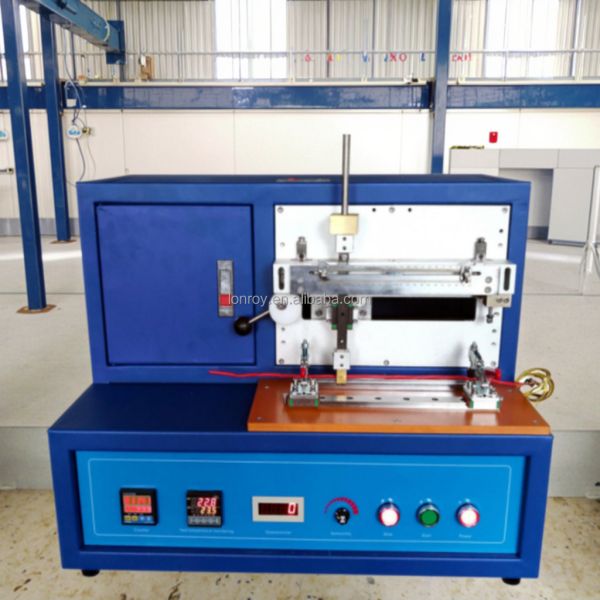

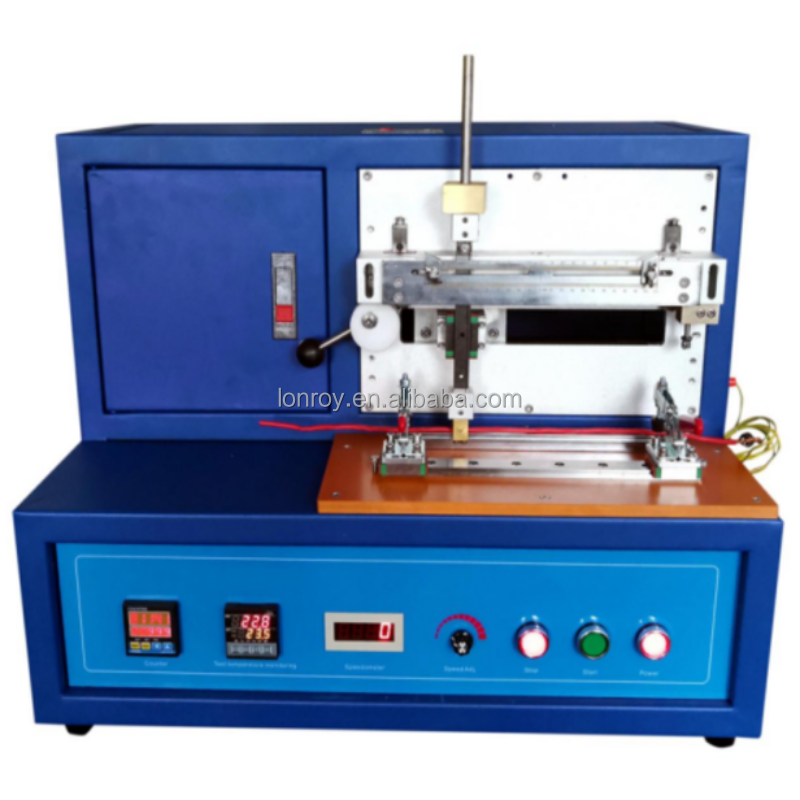

JIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing Machine

Place of Origin : China

Brand Name : Lonroy

MOQ : 1

Voltage : 220V

Protection Class : IP56

Counting : 4-digit counter

Number of Trials : 4 times

Weights : 500g, 750g, 1000g, 1250g

Sample rotation angle : 90°

Grinding Device Movement : Moves in both directions along the wire axis; travel distance: more than 10mm

Exercise Frequency : 50 to 60 cycles per minute

Test Point Distance : Greater than 10mm

Sample Length : Approximately 750mm

Fixing Method : Firmly fixed on a steel anvil

Auto-shutdown : Triggers when scraping needle penetrates insulation

Applicable Standards : JB/T 8139-1999, JIS C 3046, JASO D 611

Travel Distance : More than 10mm

Scraping Needle Weights : 500g, 750g, 1000g, 1250g

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

JIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing Machine Manufacturer Price

Product Description

Introduction

The low-voltage wire and cable abrasion resistance testing machine for road vehicles is a device used to scrape the insulation surface of automotive wires to determine the abrasion resistance of automotive wires.

Applicable standards

JB/T 8139 — 1999, JIS C 3046, JASO D 611 standards

JIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing Machine Manufacturer Price

Technical Specification

Grinding Device Movement

Moves in both directions along the wire axis; travel distance: more than 10mm

Exercise Frequency

50 to 60 cycles per minute

Counting

4-digit counter

Number of Trials

4 times

Test Point & Sample Rotation

- Minimum distance: Between test points, and between test points and sample end, both are greater than 10mm
- Sample rotation angle: 90°

Sample Requirements

- Sample length: Approximately 750mm
- Fixing method: Firmly fixed on a steel anvil

Weights (for Scraping Needle)

500g, 750g, 1000g, 1250g (applied to the scraping needle)

Special Function

Auto-shutdown: Triggers when the scraping needle penetrates the insulation and makes contact with the conductor

JIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing MachineJIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing MachineJIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing MachineJIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing MachineJIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing Machine
